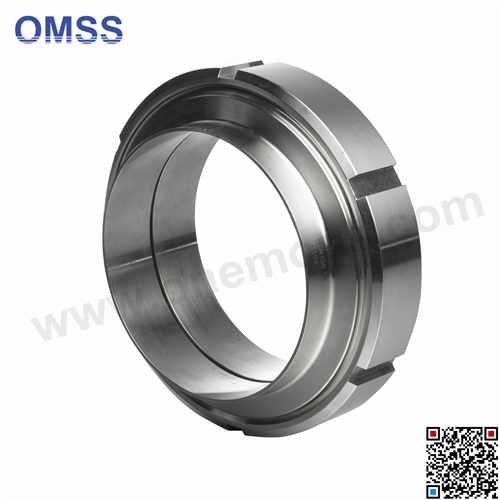

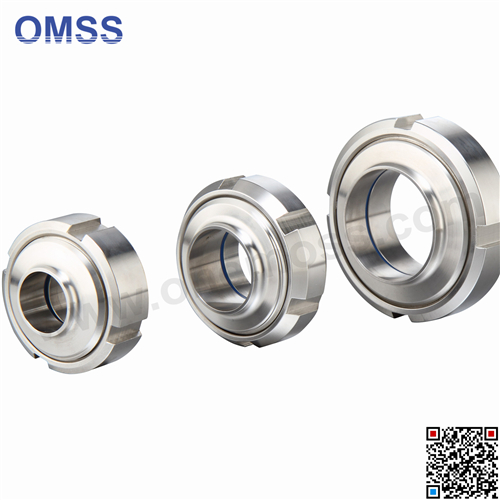

DIN Union Assembly(Short Type)

The DIN union is the German standard hygienic fitting, A complete range of DIN fittings are offered in order to meet the needs of imported equipment from Europe. These fittings are used for hygienic purposes and offer a leak-free joint obtained with a rubber seal. Available in sizes DN15mm to DN150mm.

DIN11851/DIN11850

FITTINGS SPECIFICATIONS

Size Range: DN10 ID through DN150 ID

Materials: 1.4301(304), 1.4404(316L)

Processing:Forging

Machined by CNC

Internal 21Ra(0.51μm) External 32Ra(0.8μm)

Working Pressure Range,(Fully Forged Unions):

DN 10 - DN 40 Max,Working Pressure 40 Bar @ 20℃

DN 50 - DN 100 Max,Working pressure 25 Bar @ 20℃

DN 125 - DN 150 Max,Working pressure 16 Bar @ 20℃

NOTES THE DIMENSION TABLES

•All Dimensions are according to DIN standard.

•Wall Thickness: Fittings DN15-DN50 sizes are manufactured with 1.5 mm wall thickness.

The DN65-DN200 tube size is manufactured with 2mm wall thickness.
